Design, manufacturing, and modern facilities for innovative plastic products

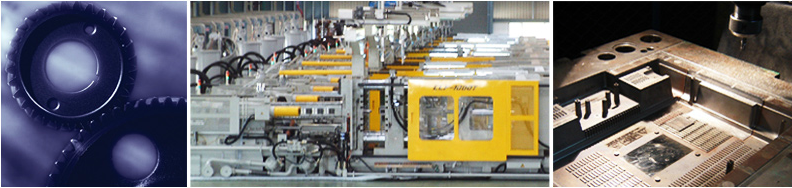

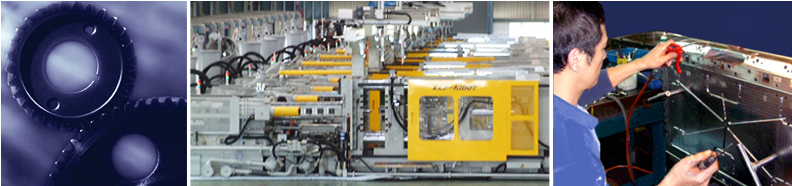

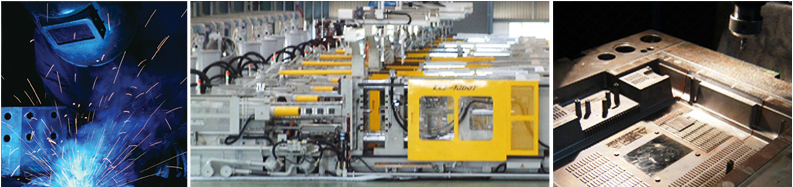

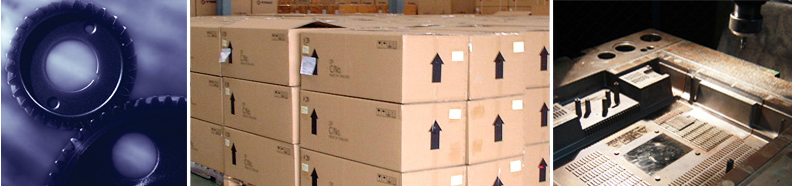

The production facility located in the Nakornratchasima, ( Its Northeastern 250 kilometers away from Bangkok) comprises a 197,000 square meter factory with 30 plastic injection machines, 9 painting and assembly lines with tempo printing machines, and 42 painting booths. We provide high capacity, fast turnaround production of Injection molded plastic parts and custom designed molds from our state-of-the-art injection molding facility.
Trio Plastic Co. offers the most fast, flexible, and customer-driven operation. We start with a state-of-the-art facility with 30 modern injection machines ranging from 80 to 1420 tons and the most advanced technology of steam boiler equipment which will produce the most perfect weld less injection products. Then we add full finishing lines with painting, printing, and assembly capabilities, well trained skilled workers, and first-class quality assurance. The result is injection molding of the highest caliber and products that will give your complete satisfaction.
Plastic Injection Machines 30 sets
| Brand | Force (Tons) | Capacity (grams) | Tie Bar (mm) | Set(s) |
|---|---|---|---|---|
| CHUAN LIH FA | 1420 | 5866 | 1350 X 1300 | 4 |
| CHUAN LIH FA | 1400 | 4929 | 1450 X 1450 | 1 |
| CHUAN LIH FA | 1000 | 3542 | 1050 X 990 | 6 |
| CHUAN LIH FA | 800 | 3197 | 990 X 940 | 5 |
| CHUAN LIH FA | 750 | 1927 | 990 X 990 | 2 |
| CHUAN LIH FA | 600 | 2175 | 910 X 910 | 3 |
| CHUAN LIH FA | 600 | 1693 | 860 X 850 | 3 |
| CHUAN LIH FA | 400 | 1145 | 680 X 600 | 3 |
| CHUAN LIH FA | 400 | 988 | 730 X 730 | 3 |
| CHUAN LIH FA | 350 | 643 | 670 X 670 | 2 |
| CHUAN LIH FA | 285 | 531 | 610 X 610 | 5 |
| CHUAN LIH FA | 230 | 387 | 560 X 560 | 2 |
| CHUAN LIH FA | 180 | 277 | 510 X 510 | 4 |
| CHUAN LIH FA | 125 | 277 | 420 X 420 | 4 |
| CHUAN LIH FA | 120 | 134 | 420 X 420 | 7 |
| CHUAN LIH FA | 80 | 134 | 340 X 340 | 4 |
| CHUAN LIH FA | 60 | 49 | 315 X 315 | 2 |
Finishing Lines
| Painting Line | Painting Booth | Special Clean Assembly Room | Tempo Printer |
|---|---|---|---|
| 2 | 6 | 8 | 13 |
Tooling Equipments
| Name | Model | Specification | Brand | Set(s) |
| CNC | - | - | - | 1 |
| EDM | 50EZ | 780 X 780 X 1930mm /220kgs | CHMER | 1 |
| EDM | 75EZ | 780 X 780 X 1930mm /250kgs | CHMER | 1 |
| Milling | DL-GH2200 | 1830 x 1550 x 2210mm 2,600kgs | DAHLIH | 1 |
| Milling | V-1600 | 4640 x 2340 x 2750mm 8,800kgs | DAHLIH | 1 |
| Welding Laser | TL-150N | 460 x 650 x 810mm /110kgs | TechnoCoat | 1 |
| Welding | PA-NA TIG WS300 | PANASONIC | 1 |
|
| Grinding | 3060AH | C&Y | 1 |
|
| Enmill | 50Hz | VERTEX | 1 |
|
| Lathe | CH-400 X 800 | 2000x1000x1400mm 170kgs | KINWA | 1 |
| Drilling | TPR-C1250 | 2030x980x2810mm | TAIPIN | 1 |
| Sand blasting | - | - | - | 1 |
